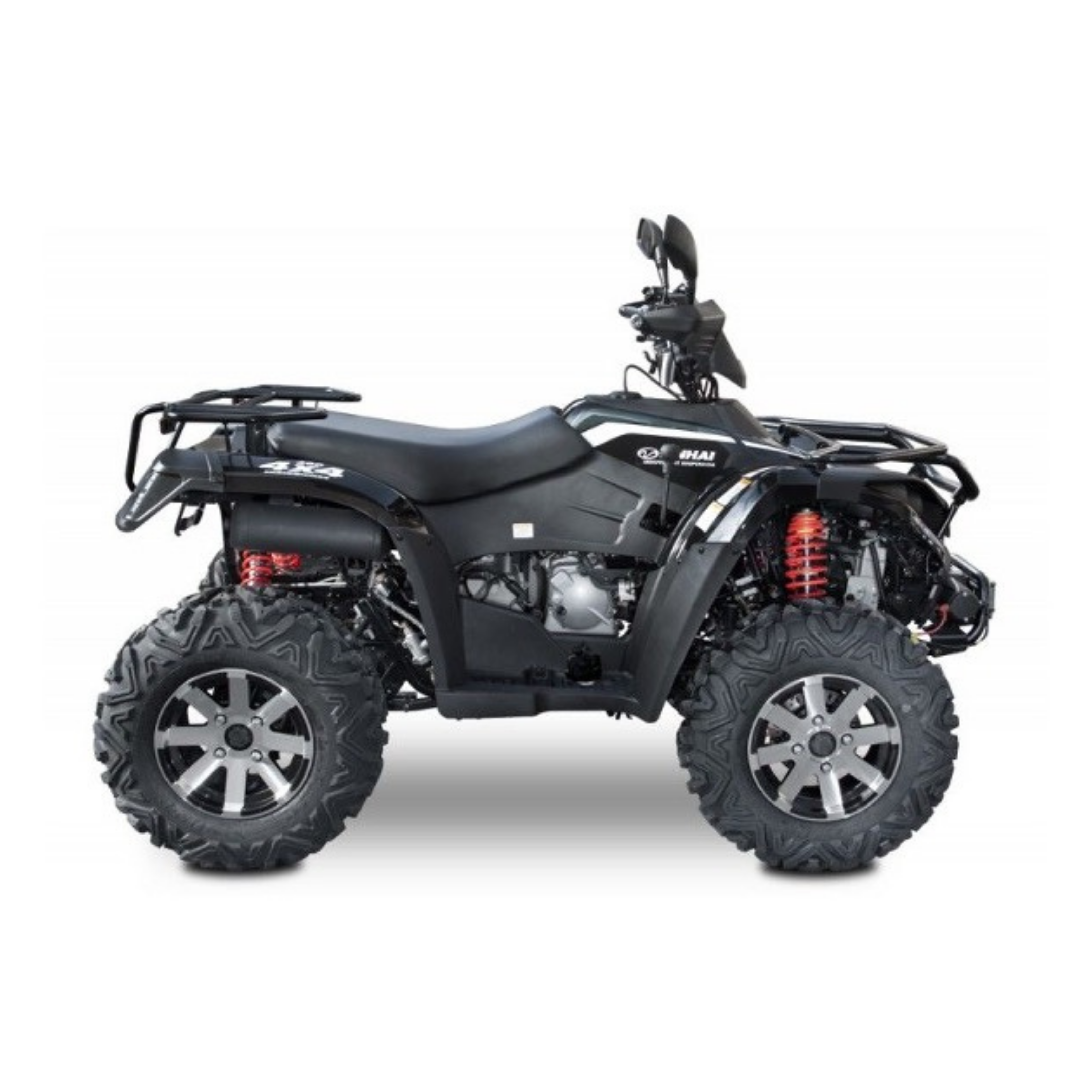

LINHAI 400 4X4

LINHAI 400 4X4

Model

ATV400-D

Size (LxWxH)

2100x1140x1270mm

Wheelbase

1270mm

Ground Clearance

270mm

Dry Weight

330kg

Loading Capacity

129kg

Fuel Tank Capacity

14 L

Max Speed

70km/hr

Specifications of Tire Front/Rear

AT25x8-12 / AT25x10-12

Brake System Control Model Front/Rear

Hand brake, Foot brake/Hand brake, Foot brake

Brake system Model Front/Rear

Disc brake/ Disc brake

Suspension Type Front

McPherson Independant suspension

Rear

Twin-A arms independant suspension

Engine Type

LH180MQ

Model Single Cylinder

4-stroke, water cooled

Cylinder Dimension

352cc

Bore and Stroke

80x70mm

Rated Power

19/7000 (kw/r/min)

Max Torque

27/5500 (Nm/r/min)

Compression Ratio

9.8:1

Fuel System

CARB/EFI

Start Type

Electric start

Transmission

Automatic L-H-N-R



COLORS AVAILABLE                                                                                 ORANGE   BLUE
